Bullet trap is used to stop and encapsulate the bullet. There are many different kinds of bullet traps that can be used for safe environment shooting range activities.

We are engaged in designing and engineering the finest quality of portable bullet traps.

We produce portable bullet traps with AR500 steel with our proprietary ballistic rubber products.

Together both steel and rubber can defeat round, contain all lead dust, eliminate ricochet and back splatter.

Portable bullet traps are one of the primary Important devices which is used for military, law enforcement and commercial training.

Ballistic rubber products cannot defeat the rounds alone; they need steel backing.

The foremost advantage for portable bullet traps helps in close firing tactics at various angle shooting ranges.

Assault rifles have higher velocity bullet range which can be fired in a safe environment shooting range. Due to the help of portable bullet traps you can shoot with rifles with close tactics.

The bullet traps are flexible which can be movable from one place to another inside a tactical shoot house.

Traps are also designed as large sizes for mobile walls.

Bullet Traps are modular and any component can be replaced for longevity and cost Savings.

Portable Bullet Traps Advantages
Safe environment shooting range Position can be change quickly, allowing for less predictable engagement areas then wall mounted
Portability from one place to another Low maintenance for tactical shoot house wall
Ready to install range Cross-firing lane for shooters
Train as per close encounter shooting tactics Helps to collect bullet leads in some cases
Flexible to move inside tactical shoot house All weather effective stand
AR 500 steel at back side to stop bullet Customize shooting surface area
No exposed bolt in target zone Customize design as per request

Field accurate protection with close combat and durability for portable bullet traps.

  • Sun-Flex portable bullet traps are made with our proprietary ballistic rubber blocks to capture rounds virtually intact, reducing hazard of ricochet, splatter and lead particles.
  • We are industry leaders in producing finest quality of ballistic rubber products include bullet traps with our own design.
  • Our portable bullet traps are design specially for close combat shooting tactics.
  • Special forces can practice close combat tactics by engaging enemy with personal weapons at very short distance range, from proximity hand-to-hand combat to close-quarter target negotiation with short-range firearms.
  • Helps in better tactics for urban warfare and real time close encounter shooting range tactics.
  • This can defeat up to 7.62/.308 calibers.
  • Made with AR 500 steel.

Our Bullet Trap Design for Close Combat Tactics.

SF-100
SF-1000
GRANULAR
portable-bullet-traps

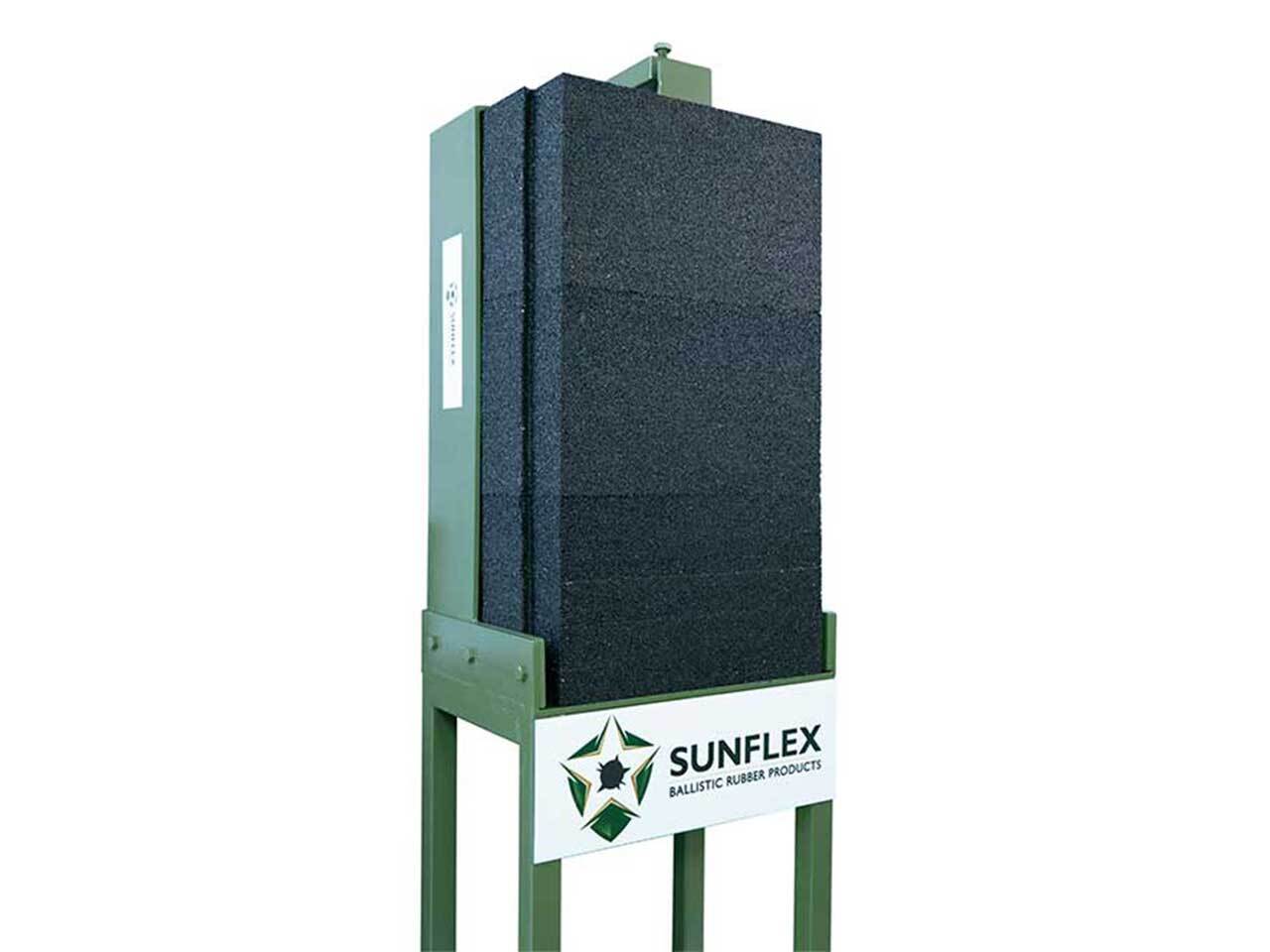

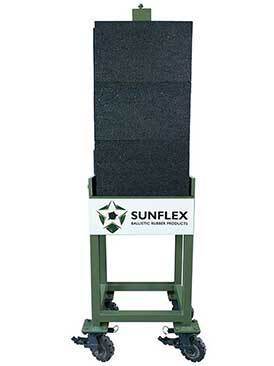

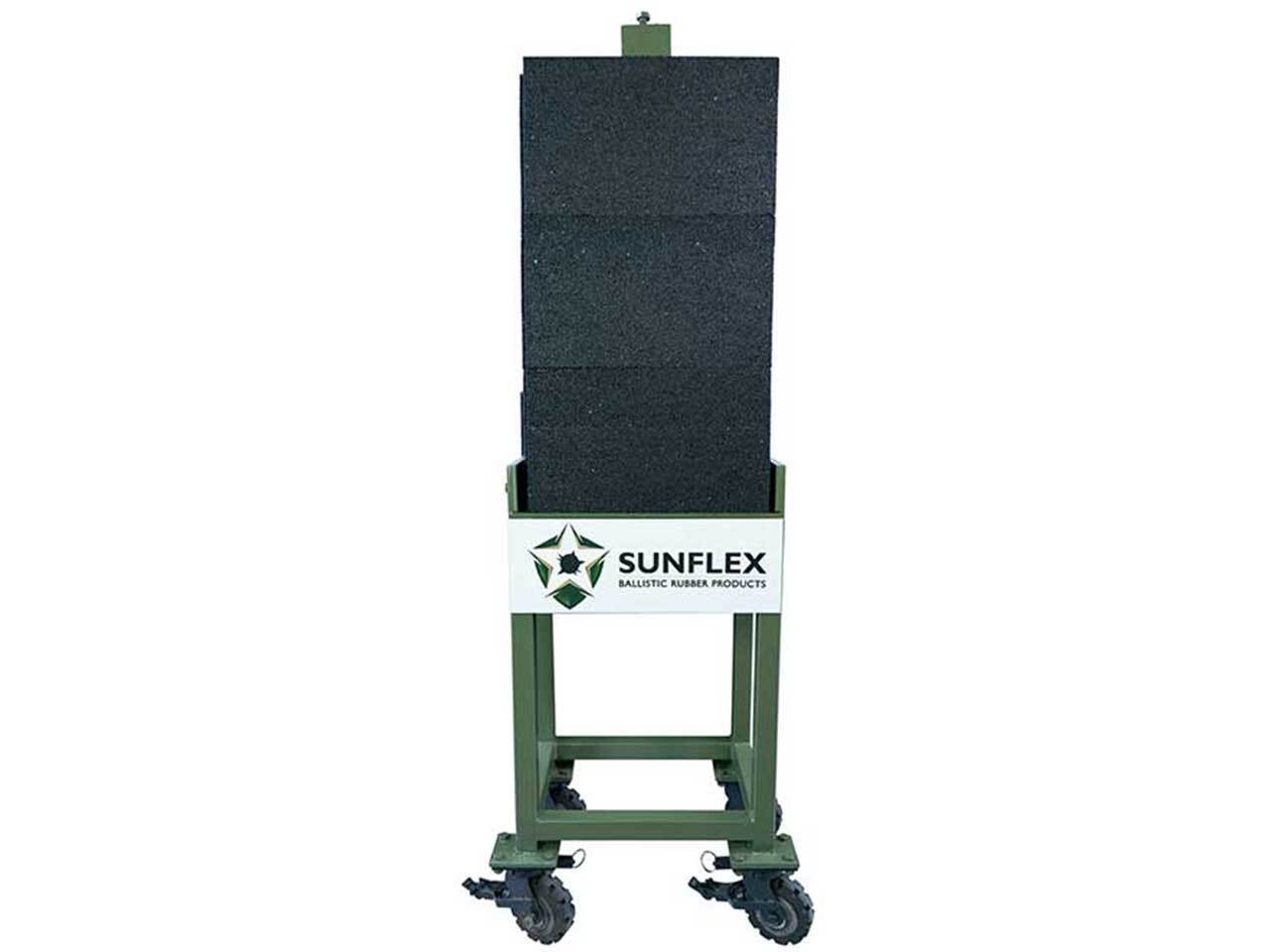

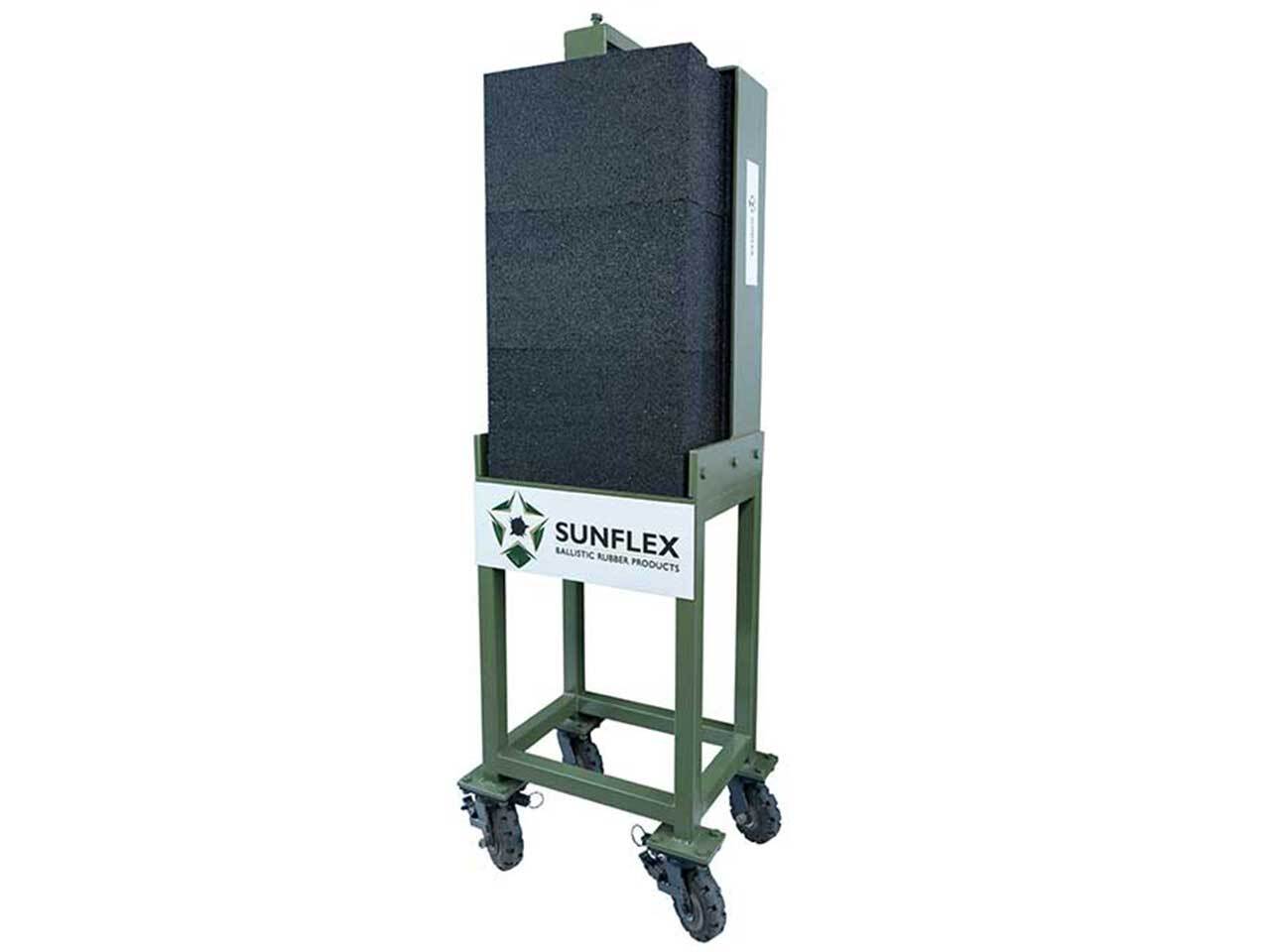

  • Model Name SF-100
  • Shooting Area Surface 4.84 ft2
  • Weight 180kg/400 lbs (Approx)
  • Made with AR500 Steel backing size 3/8”
  • 4 pieces of Ballistic Interlocking Blocks in front side to encapsulate bullets.
  • Rubber Blocks are Hot Molded Technology
  • Support of ballistic rubber tiles in legroom
  • 4 pieces of Solid rubber tyre wheels
  • Capable of defeating up to .308 / 7.62 calibers
  • It can take 25,000 rounds before replacement of ballistic rubber blocks

Description

Portable Bullet Encapsulator helps you to train safely in close encounters.

Portable bullet trap is a live-fire target system used to prevent ammunition escapement while training at engaging targets in urban environments

The bullet trap system is excellent for Live Fire Shoot Houses. This heavy-duty and rugged trap incorporates an internal self-adjusting energy dissipation ballistic strike plate.

This allow for more realistic training including weapons strike and use of secondary tools like knife.

It is a perfect tool for close retention training. Bullet Traps are modular and any component can be replaced for longevity and cost savings.

Mounts to optional wheeled base with no tools required.

Simple and easy relocation inside shoot-house by one person allowing quick setup of various training scenarios.

EXTENDED SHOOT HOUSE WALL DURABILITY

Strategic Placement of portable bullet traps inside shoot house, range, mobile range will increase life spend for all ranges.

NO SPLATTER

There will be no Injury from bullet splatter and ricochet. Rounds fired will be encapsulate inside rubber blocks

Rubber Blocks can be easily Replaceable

Over the time after thousands of rounds fired, you can easily replace ballistic rubber blocks with new ones. This will be very less maintenance compared to replace constructed wall inside shoot house

Flexible and Mobile

Portable bullet trap can be movable from one location to another inside any tactical shoot house to change target position in different practice scenario. Due to castor solid rubber tyre wheel it also provides good stability for standing and locking wheels.

Can be movable with forklifts. It can be move from one military location to another military location.

portable-bullet-traps

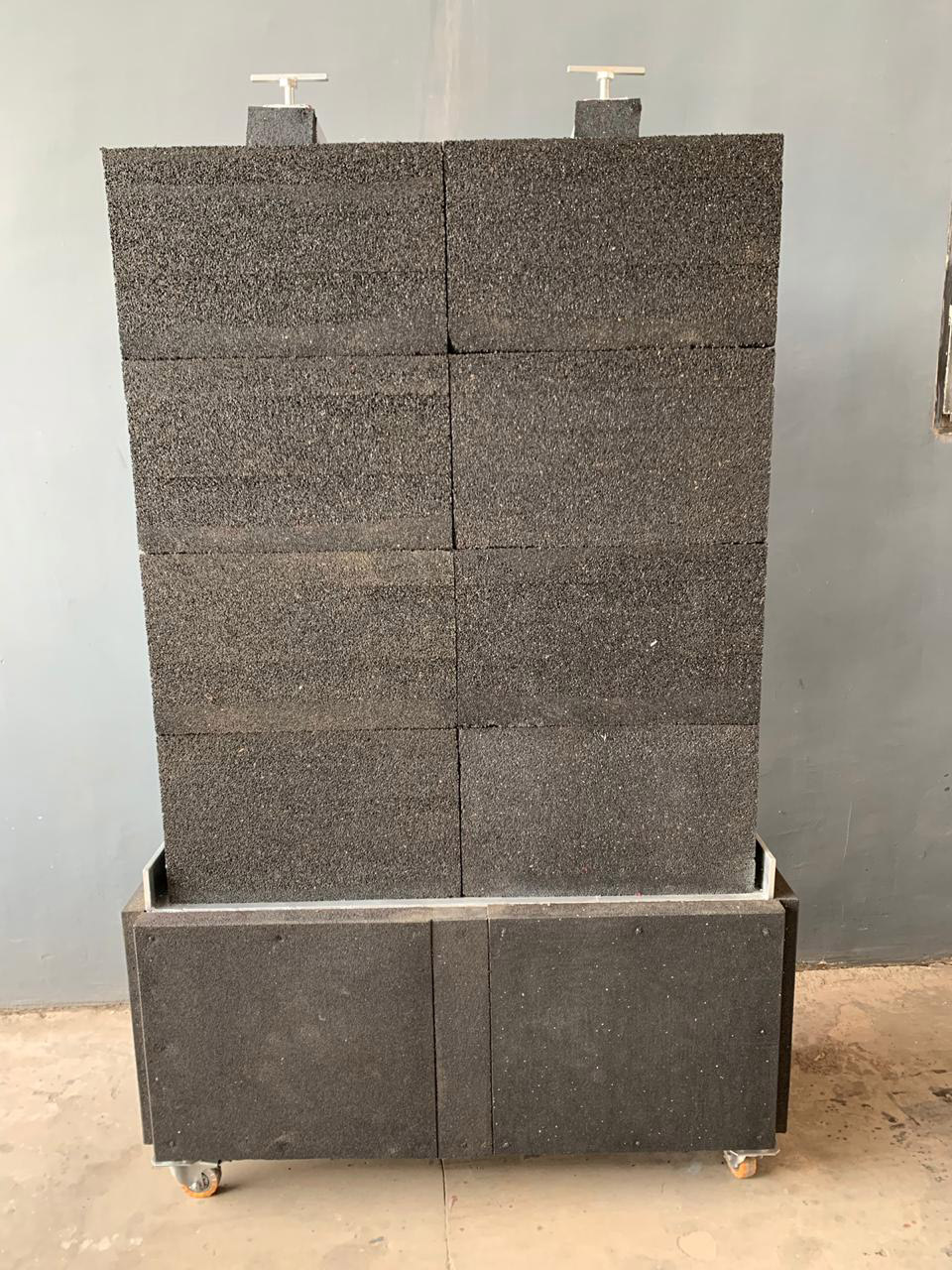

  • Model Name SF-1000
  • Shooting Area 39.36” X 78.72”
  • Weight 1000kg (Approx)
  • Made with AR500 Steel backing size 3/8”
  • 8 pieces of Ballistic Interlocking Blocks in front side to encapsulate bullets.
  • Rubber Blocks are Hot Molded Technology
  • Support of ballistic rubber tiles in legroom
  • 4 pieces of Solid rubber tyre wheels
  • Capable of defeating up to .308 / 7.62 calibers

Description

Portable bullet encapsulate the rounds in order to extend the life of shoot house.

Our higher portable bullet traps model has capability to defend more than 15000 rounds.

Strategic placement of bullet traps inside tactical shoot house can reduce number of rounds fired inside shoot house walls by 80%.

Properly utilizing portable bullet traps will extend the life of your shoot house indefinitely.

Constructed with premium certified 3/8” or 1/2”AR 500 ballistic steel.

The traps are large enough to accept standard size paper, carboard targets and can easily attach with pins or staples.

Over the time you can replace ballistic interlocking rubber blocks after certain period of rounds when rubber starts falling or wear out.

This helps in very less expensive maintenance, instead of replacing shoot house walls.

The Rubber traps can also be used outdoors in camps for open firing ranges.

A locking wheel base makes the trap easy to move throughout the shoot house. Both indoor brass-shedding, and an outdoor all terrain wheel configurations are available.

Simple and easy relocation inside shoot-house by one person allowing quick setup of various training scenarios.

EXTENDED SHOOT HOUSE WALL DURABILITY

Strategic Placement of portable bullet traps inside shoot house, range, mobile range will increase life spend for all ranges.

NO SPLATTER

There will be no Injury from bullet splatter and ricochet. Rounds fired will be encapsulate inside rubber blocks

Rubber Blocks can be easily Replaceable

Over the time after thousands of rounds fired, you can easily replace ballistic rubber blocks with new ones. This will be very less maintenance compared to replace constructed wall inside shoot house

Flexible and Mobile

Portable bullet trap can be movable from one location to another inside any tactical shoot house to change target position in different practice scenario. Due to castor solid rubber tyre wheel it also provides good stability for standing and locking wheels.

Can be movable with forklifts. It can be move from one military location to another military location.

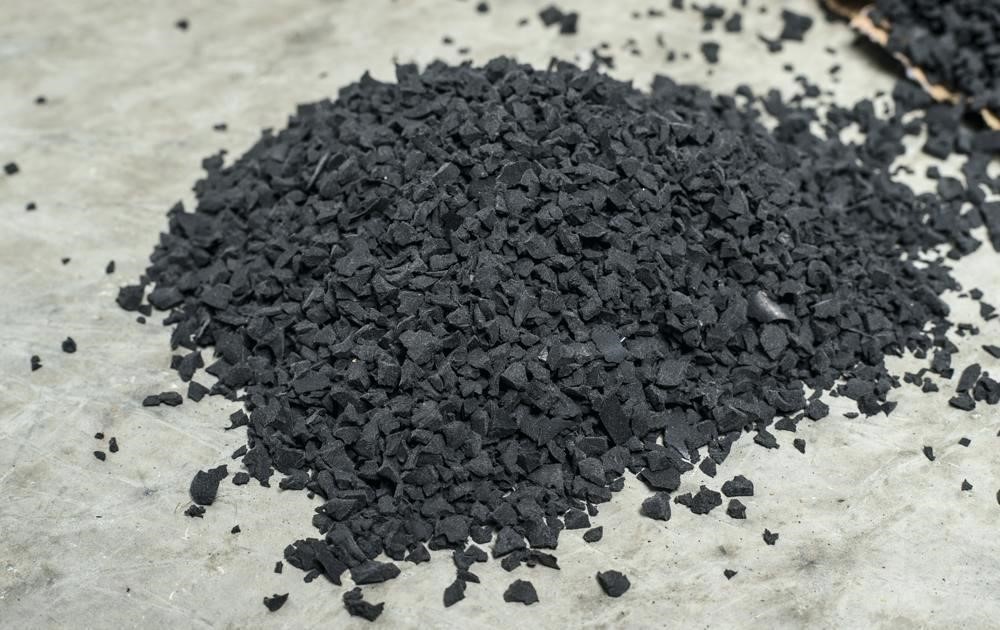

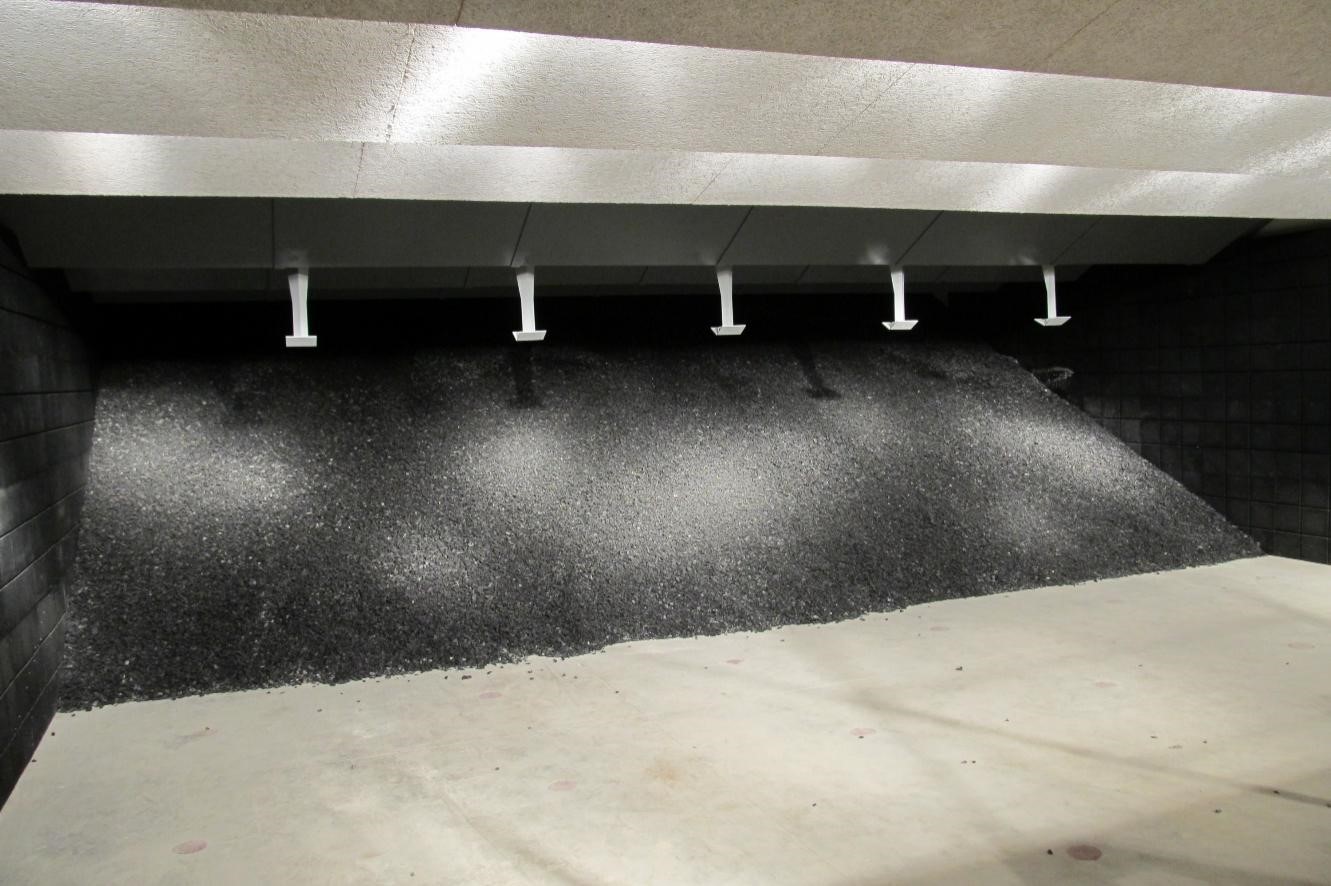

Granular Bullet Trap are produced from ballistic rubber mulch and has AR500 steel backing fabricated design for support and defeat rounds.

The ballistic rubber mulch is treated with fire retardant paint.

The depth of the crumb rubber granules should be 35” Inch.

The crumbled treated rubber is used to stop bullet which helps to reduce noise, no splatter, lead dust, prevent ricochet and improves acoustical by absorbing more sounds.

The granular bullet trap is used for high volume shooting range. This can be used for indoor and outdoor range.

This makes range safe environment for extreme usage of firing.

After firing huge amount of rounds the trap has to be clean by recycling crumb rubber granules in sieving machinery. This will separate Leads, dust into other bags.

30% new ballistic rubber mulch has to be added at certain level of range maintenance.

This is best suitable for those who want to use the trap again by recycling.

Advantages

  • Low Cost.
  • Highly Durable.
  • High volume of Rounds.
  • Reduce noise.
  • No ricochet or splatter.
  • Can be used for large areas.

Disadvantages

  • High Maintenance.
  • Periodic Cleaning for crumbled granules.
  • Need to hire professional cleaning agencies who has sieving machinery specially for crumb rubber granules.
  • Fire risk are more in ranges.
  • No portability.
APPLICATIONS
  • TACTICAL SHOOT HOUSE
  • IMPROVE CLOSE TACTICS
  • ALL SHOOTING RANGES
  • SPECIAL FORCES
  • MILITARY CAMPS
  • TACTICAL SHOOTING
  • CONTAINER SHOOTING RANGE
